BHM-102
Hemoglobin Analysis Meter Quick Guide
Fast Hb + calculated Hct testing with BHS-101 strips. 10 uL sample, results in about 5 seconds.
5 - 10s
Test time
10 uL
Sample volume
Hb + Hct
Results
4.5-25.6
g/dL range
Use Notice
- For in vitro diagnostic use & wellness only
- Not applicable to newborns
- Use BHS-101 strips with the matching code chip
Before You Start
- Insert the code chip and confirm the code matches the strip canister.
- Units are fixed to g/dL, g/L, or mmol/L on the device.
- Operating range: 10-40C, indoor use.
Specimen Options
- Capillary: use the second drop of fingertip blood.
- Venous: EDTA or heparin whole blood only.
- Mix venous specimens well and test within 8 hours.
- If refrigerated, bring to 10-40C for about 15 minutes.

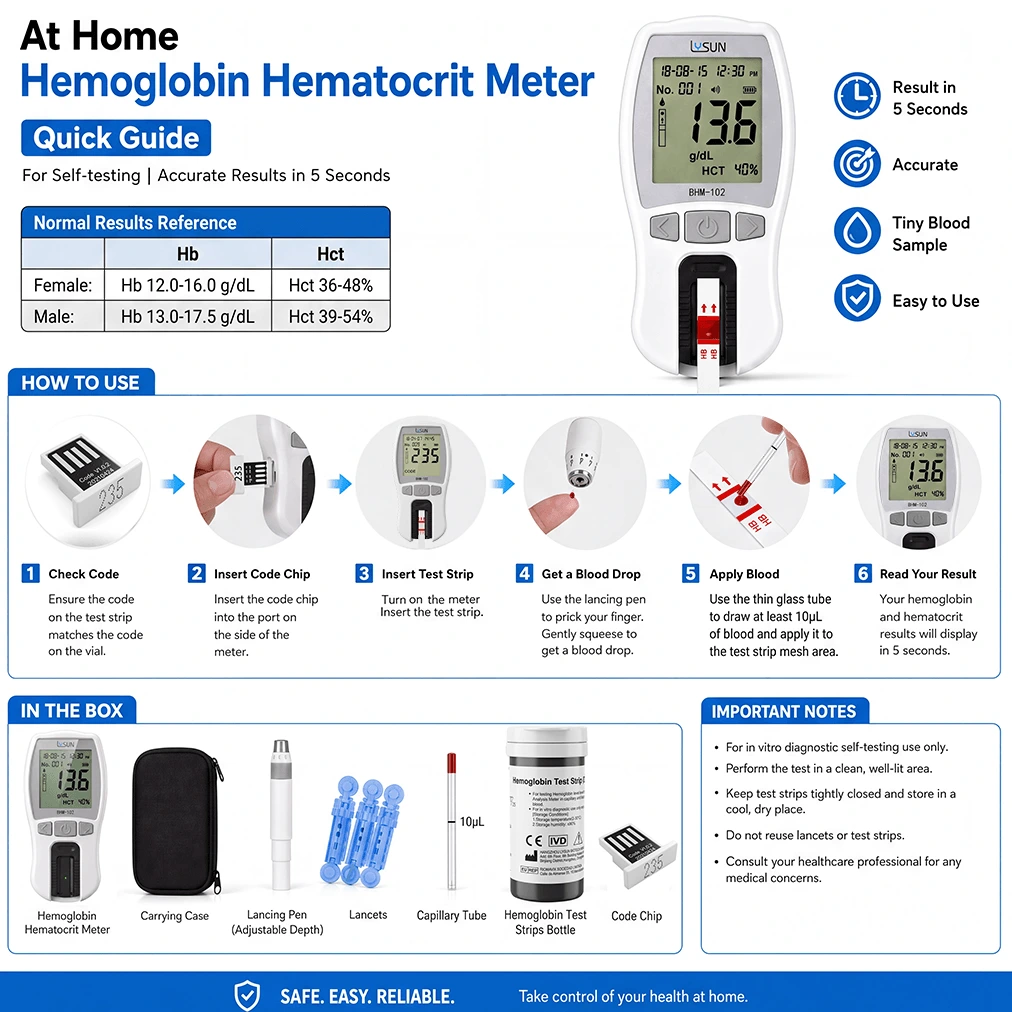

Ordered Test Steps
- Wash and dry hands, warm the finger, and prepare supplies.
- Turn on the meter and verify the code number.
- Insert a test strip fully in the direction of the arrows.
- Collect 10 uL blood with a capillary transfer tube.
- Apply the sample to the center of the specimen area when the blood-drop symbol flashes.
- Wait about 5 seconds, then read Hb and calculated Hct.
- Remove the strip and dispose of materials safely.
Sampling Tips
- Do not touch the test strip with the tube tip.
- Do not squeeze the capillary tube while sampling.
- Ensure the tube fills by capillary action to the line.
- Avoid iodine swabs for fingertip collection.
After the Test
- Dispose of blood materials as potentially infectious.
- Keep the strip channel clean and dry.
- Auto power-off after 5 minutes of inactivity.

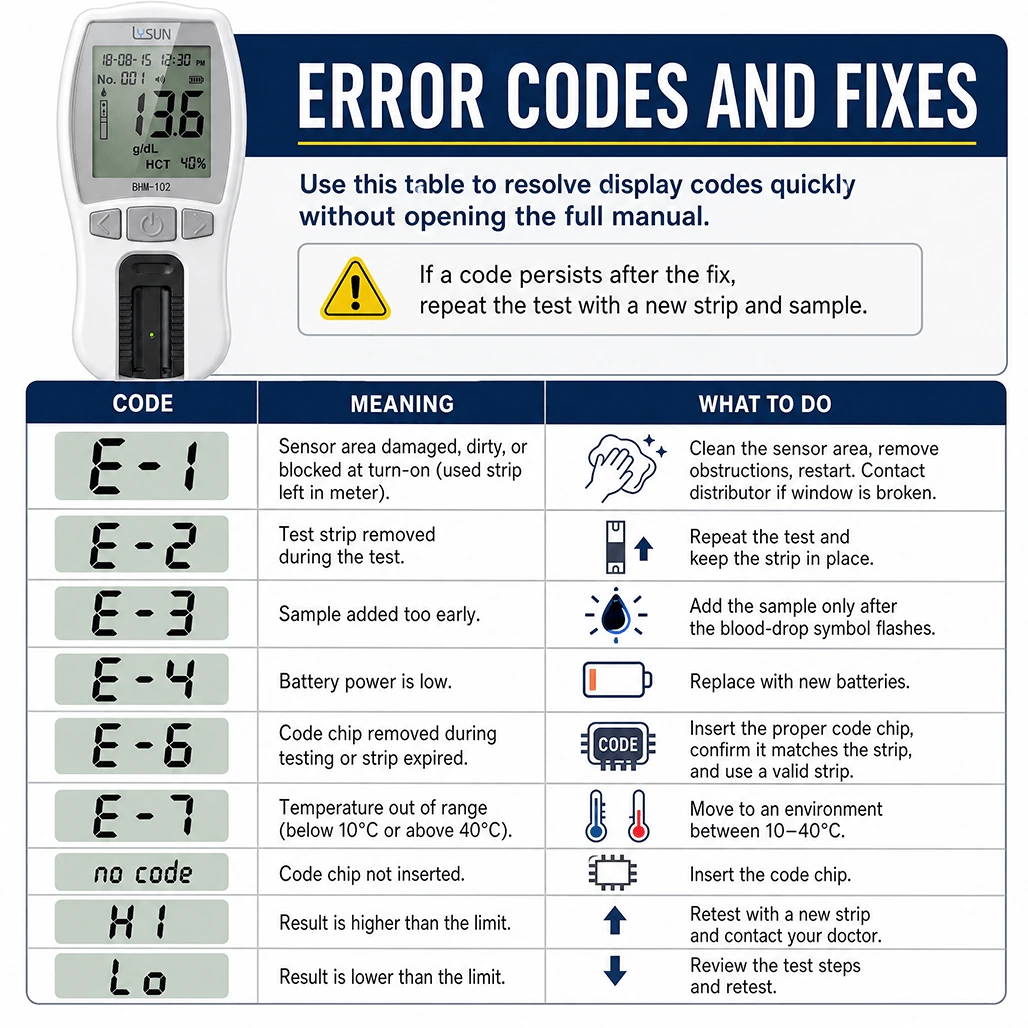

Error Codes and Fixes
Use this table to resolve display codes quickly without opening the full manual.
If a code persists after the fix, repeat the test with a new strip and sample.
| Code | Meaning | What to Do |
|---|---|---|
| E-1 | Sensor area damaged, dirty, or blocked at turn-on (used strip left in meter). | Clean the sensor area, remove obstructions, restart. Contact distributor if window is broken. |
| E-2 | Test strip removed during the test. | Repeat the test and keep the strip in place. |
| E-3 | Sample added too early. | Add the sample only after the blood-drop symbol flashes. |
| E-4 | Battery power is low. | Replace with new batteries. |
| E-6 | Code chip removed during testing or strip expired. | Insert the proper code chip, confirm it matches the strip, and use a valid strip. |
| E-7 | Temperature out of range (below 10C or above 40C). | Move to an environment between 10-40C. |
| no code | Code chip not inserted. | Insert the code chip. |
| HI | Result is higher than the limit. | Retest with a new strip and contact your doctor. |
| Lo | Result is lower than the limit. | Review the test steps and retest. |
